• Wheels, 17" (43.2 cm) steel includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
• Tires, LT245/75R17E all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• CornerStep, rear bumper (Requires (E63) pickup box.)
• Bumper, rear chrome with bumper CornerSteps (Requires (E63) pickup box.)
• Grille surround, chrome
• Headlamps, halogen projector-beam
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection caps, top
• Tailgate, locking, utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.)

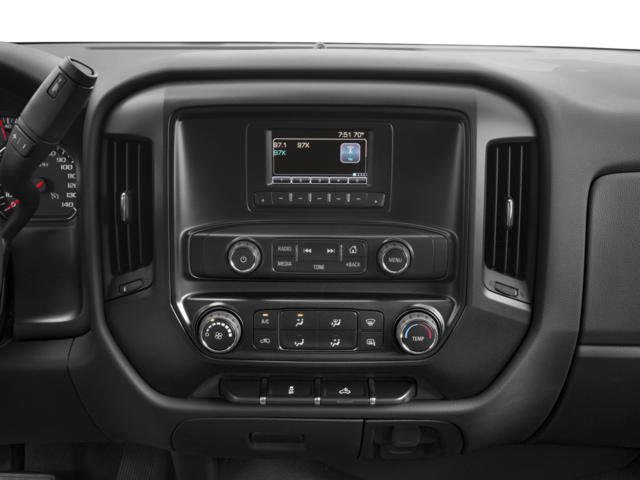

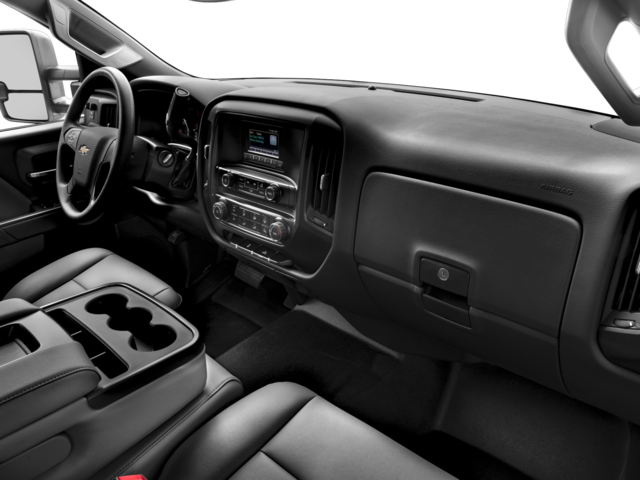

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.) (Not available with (AZ3) 40/20/40 split-bench seat. Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.)
• XM Satellite Radio, delete
• 6-speaker audio system (Standard on Crew Cab and Double Cab models and Included and only available on Regular Cab models with (IOB) 7" diagonal color touch screen display radio with Chevrolet MyLink)

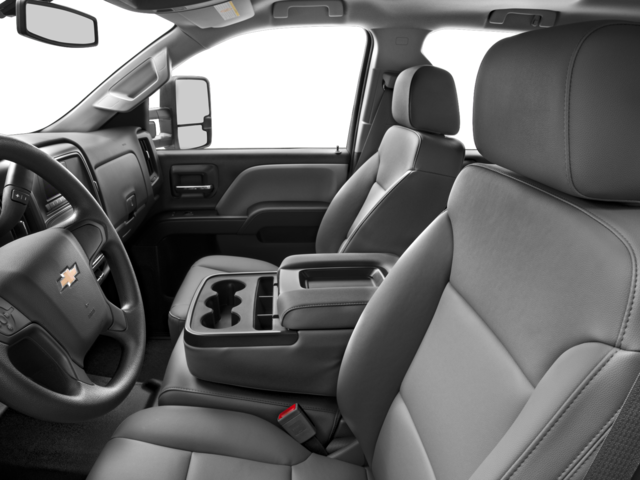

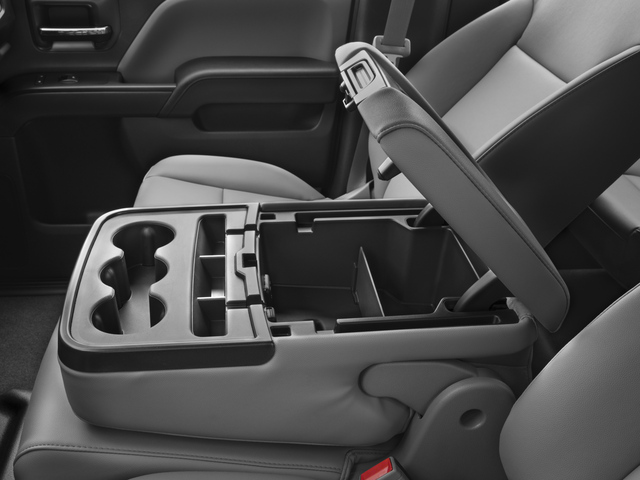

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Seat trim, Vinyl

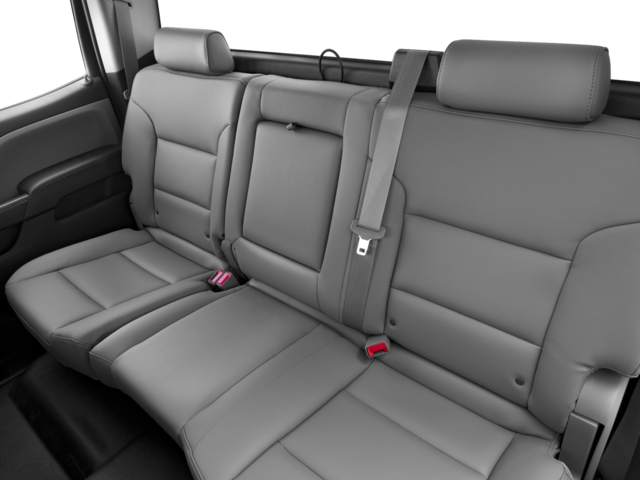

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab models.)
• Floor covering, Graphite-colored rubberized-vinyl

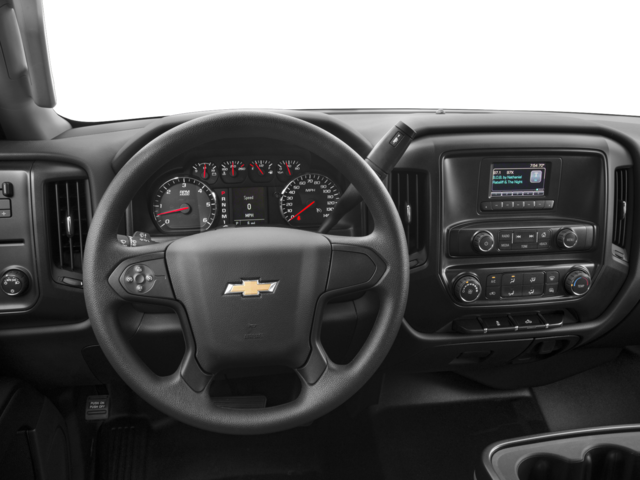

• Steering column, manual Tilt-Wheel
• Steering wheel
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Windows, power with driver express up and down and express down on all other windows (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PCM) WT Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PCR) WT Fleet Convenience Package.)
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Crew Cab: Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions. (With (ZW9) pickup box delete on Double Cab and Regular Cab you will get the following: Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information. Regular Cab model does not have rear outboard seating positions.)
• OnStar, delete also deletes driver information center compass
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire)

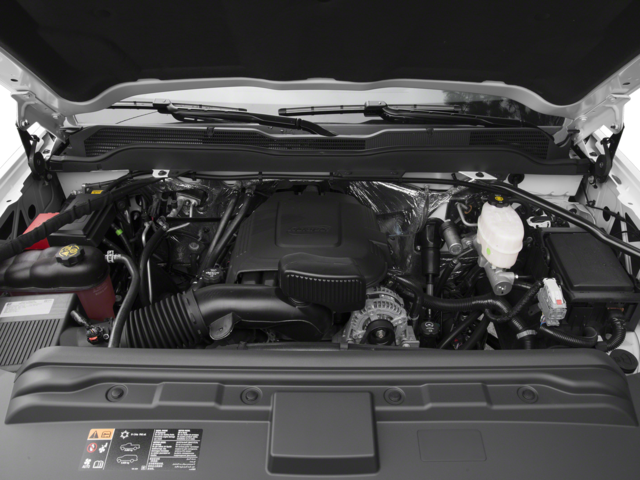

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

• GLASS DEEP-TINTED
• SUMMIT WHITE
• BED LINER SPRAY-ON Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gauge hole plugs and lower tie down loops.
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7 DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• TRAILERING EQUIPMENT Trailering hitch platform 2.5 with a 2.0 insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• SUSPENSION PACKAGE OFF-ROAD FOR BASE DECOR VEHICLES Includes Z71 Off Road Suspension components twin-tube Rancho brand shocks and (NZZ) Underbody Shield. Does not include any Z71 appearance features or (JHD) Hill Descent Control.
• GVWR 9500 LBS. (4309 KG)
• WHEELS 17 (43.2 CM) STEEL includes 17 x 7.5 (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• REMOTE LOCKING TAILGATE
• PAINT SOLID
• WHEELS 17 X 7.5 (43.2 CM X 19.1 CM) FULL-SIZE STEEL SPARE.
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• REAR VISION CAMERA
• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror)
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Requires Subscription
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3855
• Curb Weight - Rear (lbs): 2679
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 5200
• Rear Tire Capacity (lbs): 6200
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.65
• Ground Clearance, Rear (in): 9.65
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

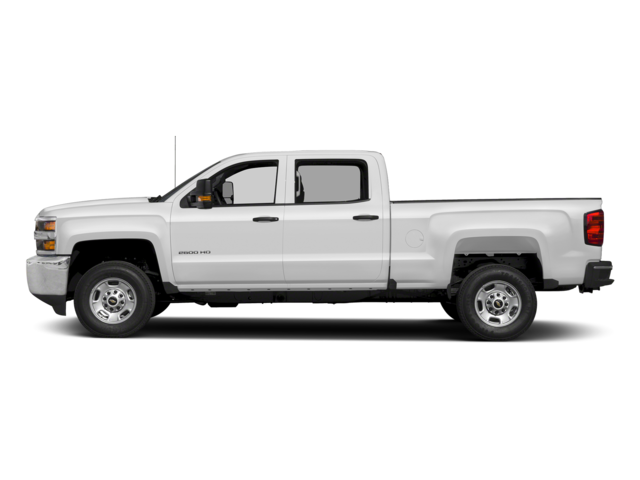

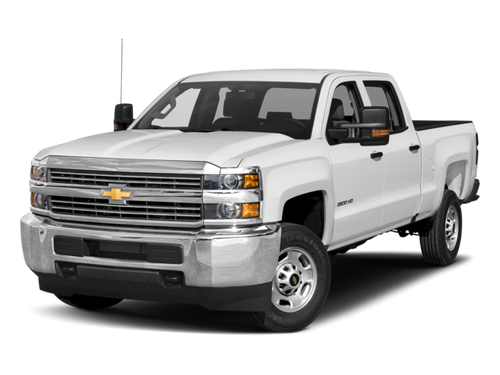

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
